Hoyer HPL402 Electric Patient Lift

Name: Hoyer HPL402 Electric Patient Lift
Brand: Hoyer
SKU: HPL402
Price: 1598.0 USD
Availability: InStock

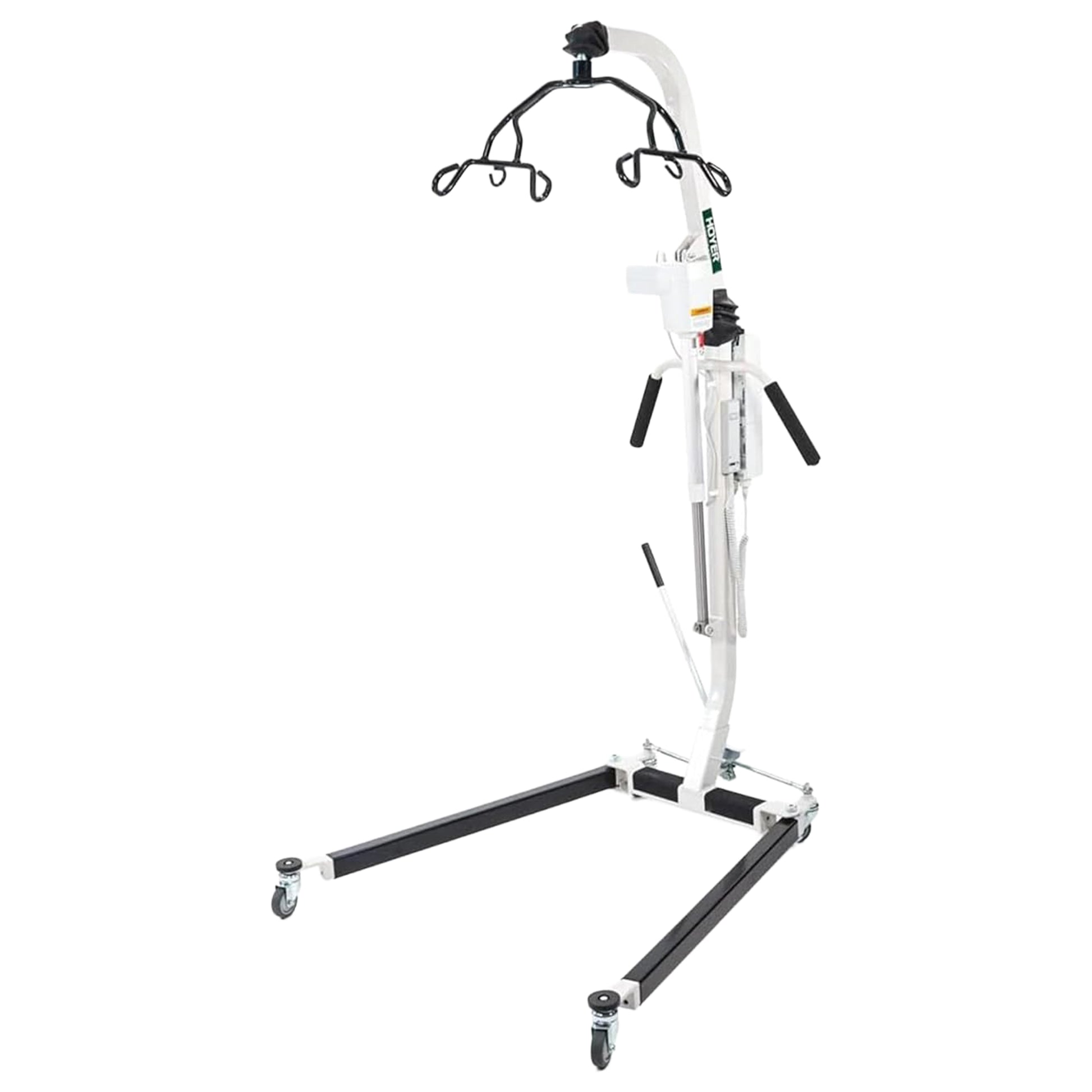

Hoyer HPL402 Electric Patient Liftlwith four wheels, featuring a four-groove overhead cradle, hydraulic lift mechanism, and handle grips, shown on a solid white background.

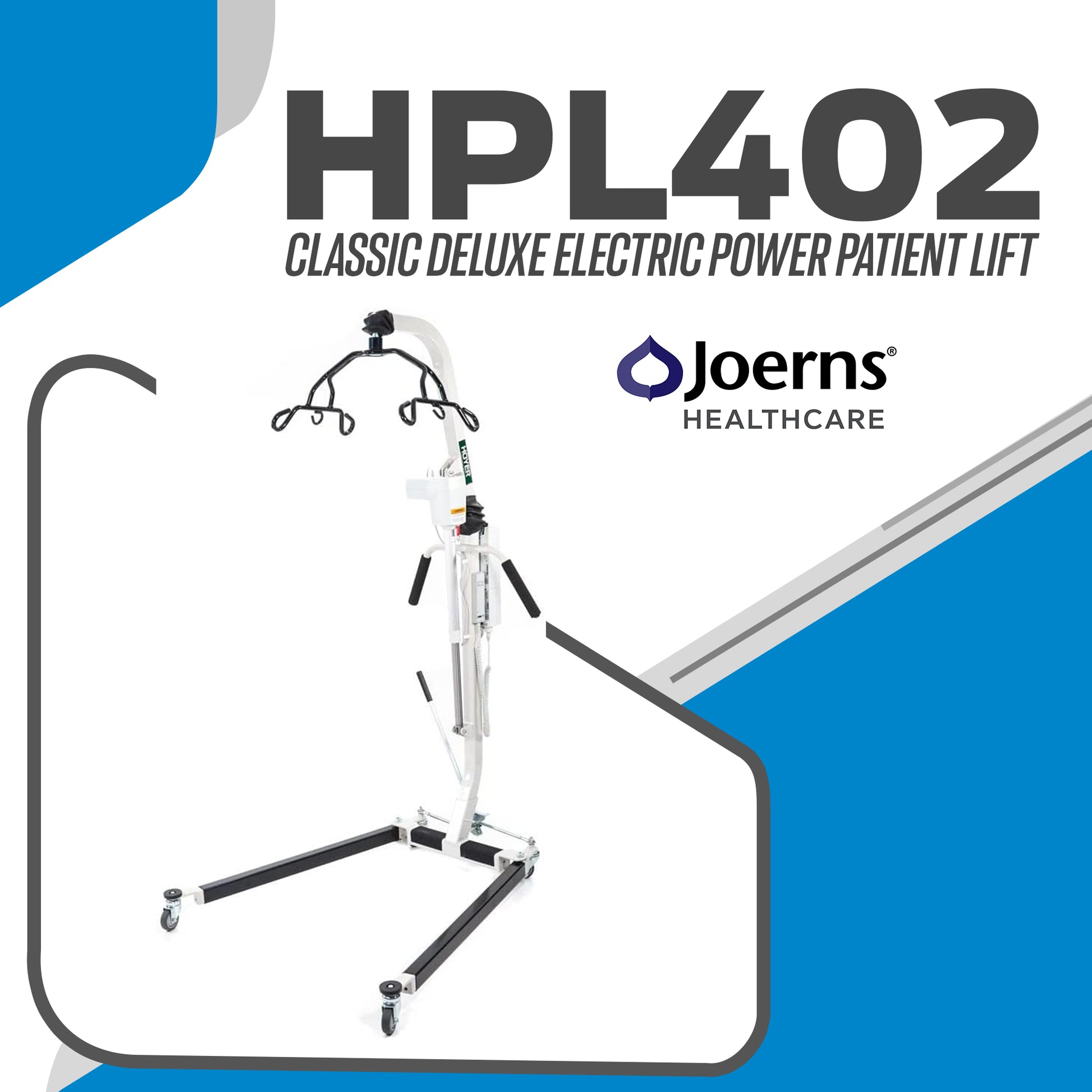

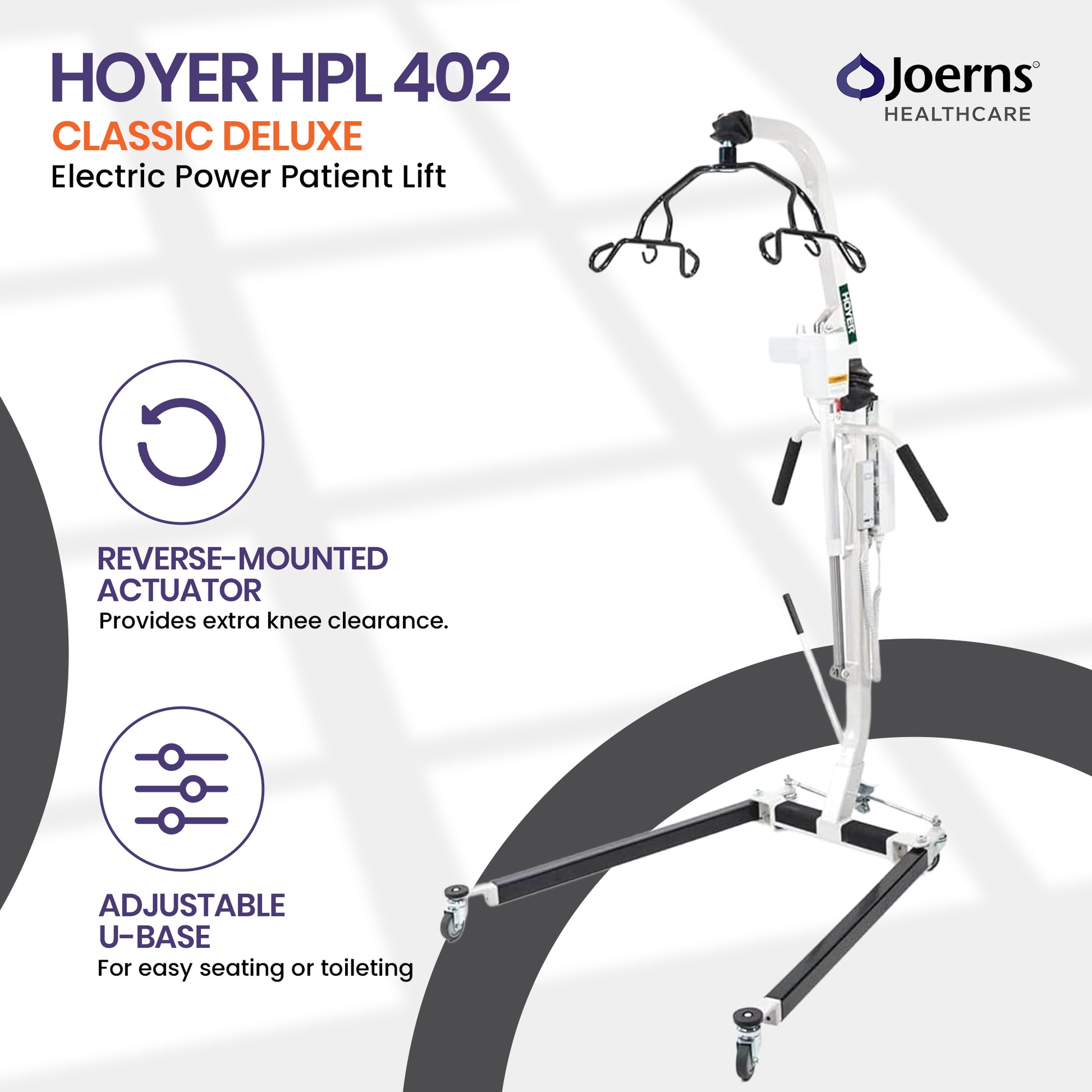

Joerns Healthcare Hoyer HPL 402 Classic Deluxe electric power patient lift on a white and gray background with feature callouts.

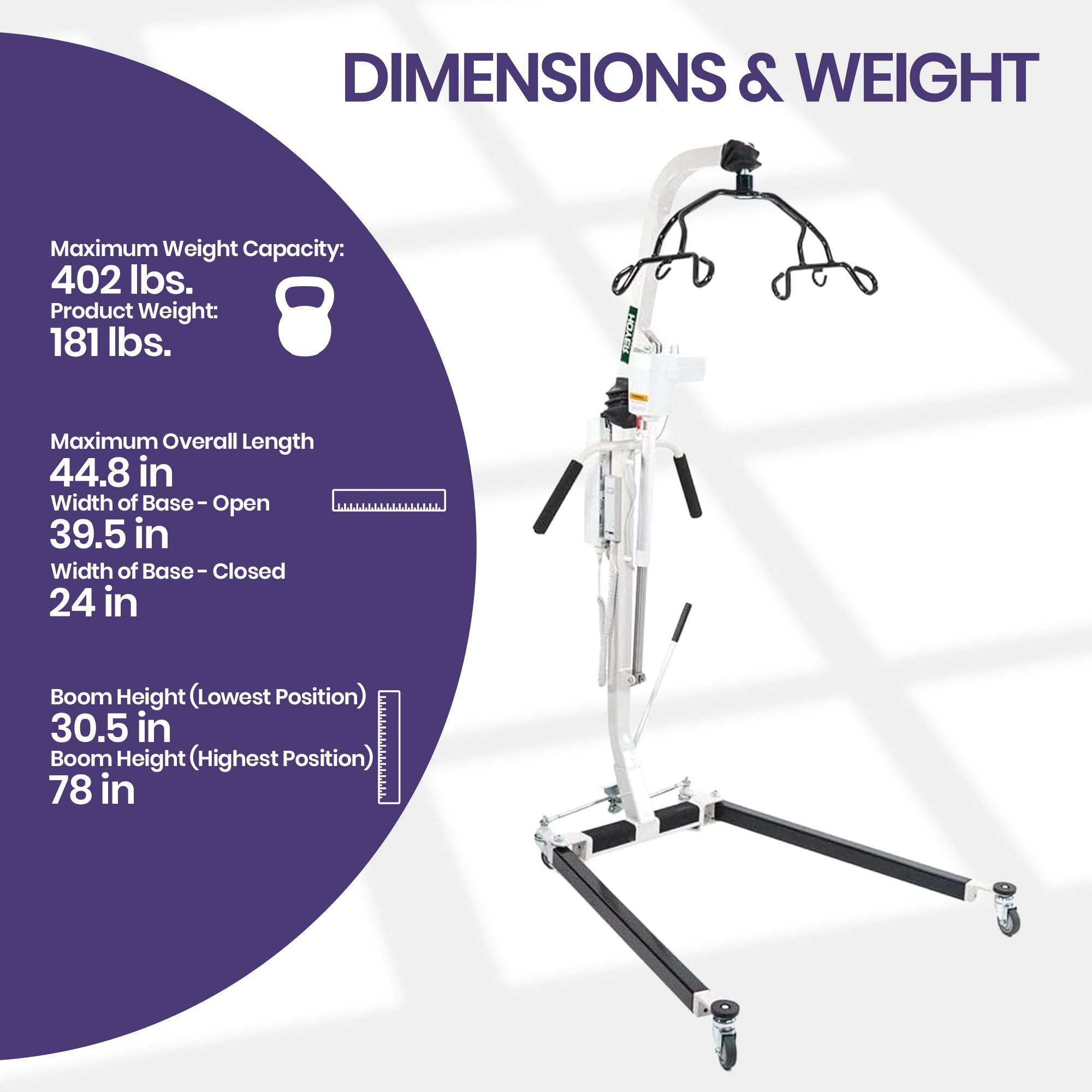

A freestanding hospital-style patient lift or transfer table shown on a white background with a large purple circular information panel on the left. The panel reads 'DIMENSIONS & WEIGHT' and lists capacity, weight, overall length, base dimensions, and boom heights.

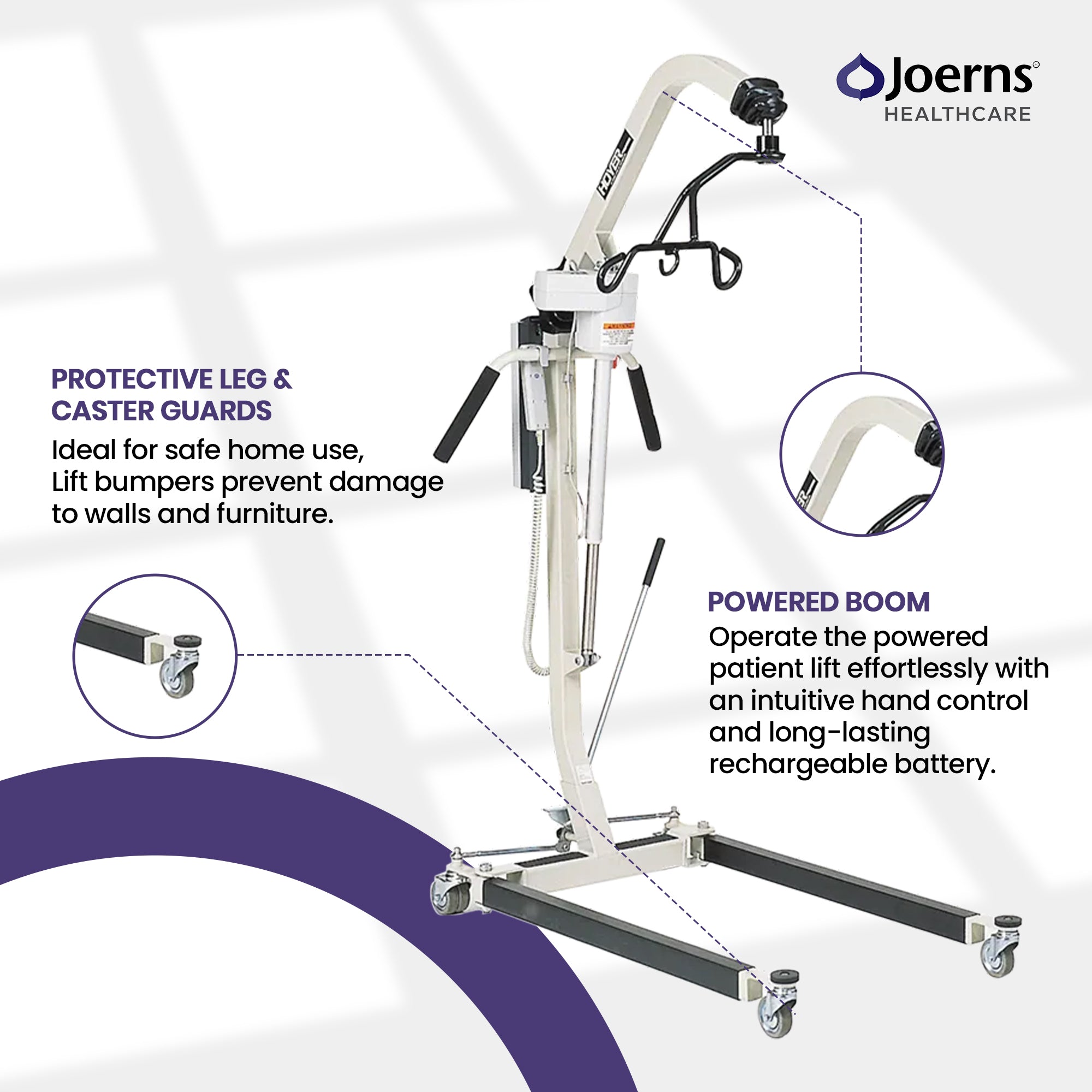

Joerns Healthcare powered patient lift shown on a white background with feature callouts and circular inset detail views. The image includes text describing protective leg and caster guards and a powered boom with rechargeable battery.

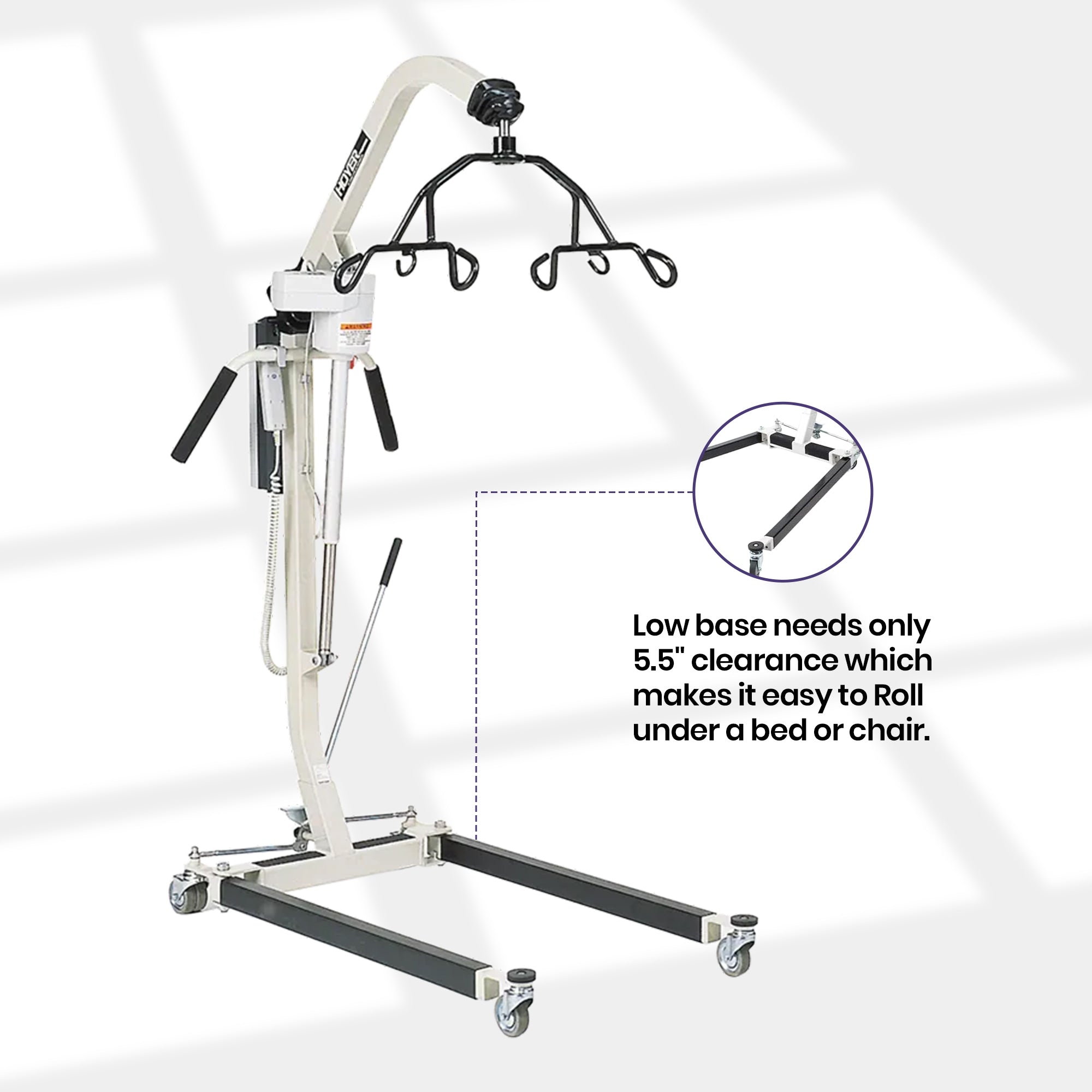

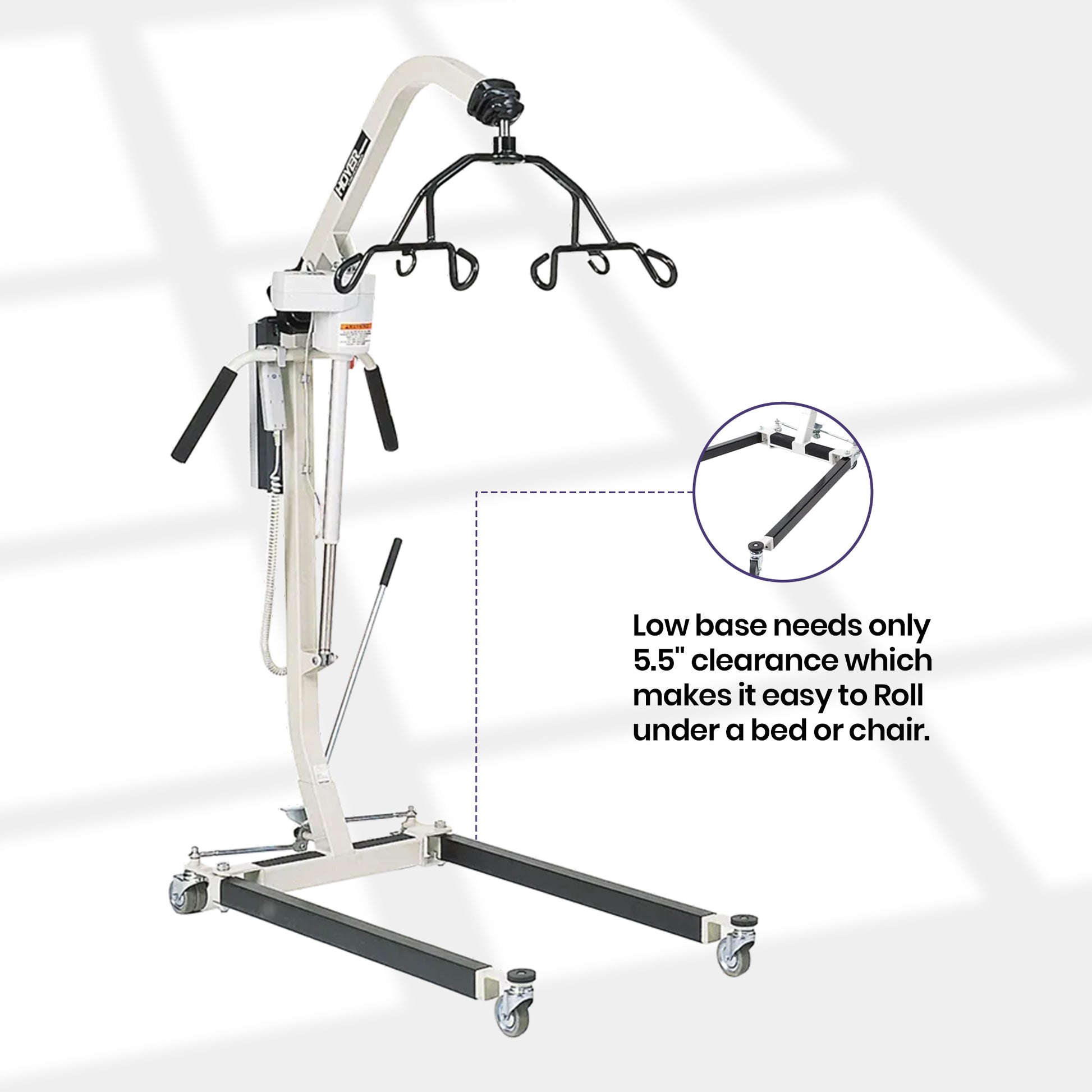

White and black medical lift chair with a wheeled base and overhead transfer frame, shown on a light gray background with a circular inset detail and explanatory text about low base clearance.

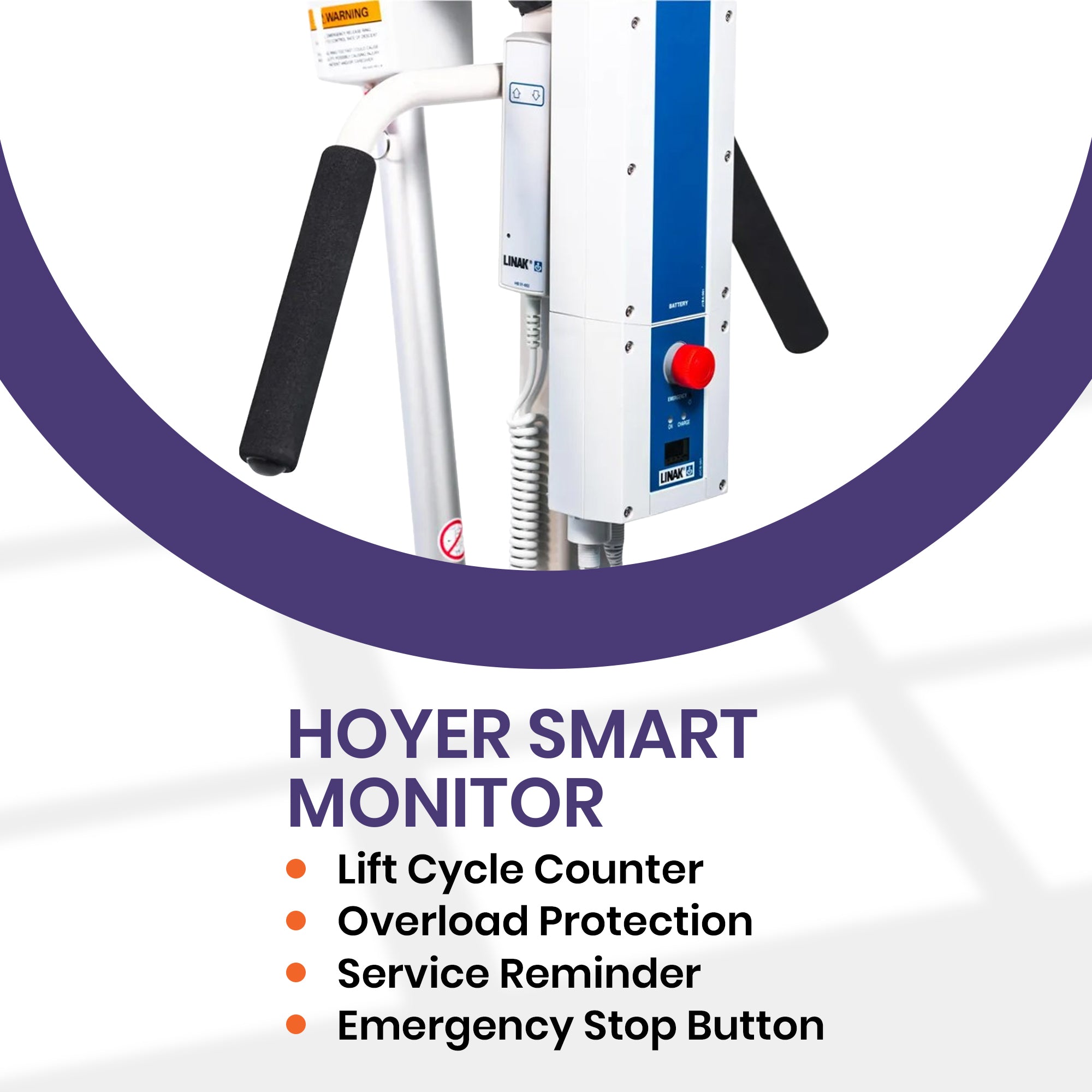

Hoyer Smart Monitor lift control unit, showing part of the white and blue monitor with black handles and a red emergency stop button, plus text listing features like lift cycle counter, overload protection, service reminder, and emergency stop button.

Joerns Hoyer HPL402 patient lift feature comparison chart

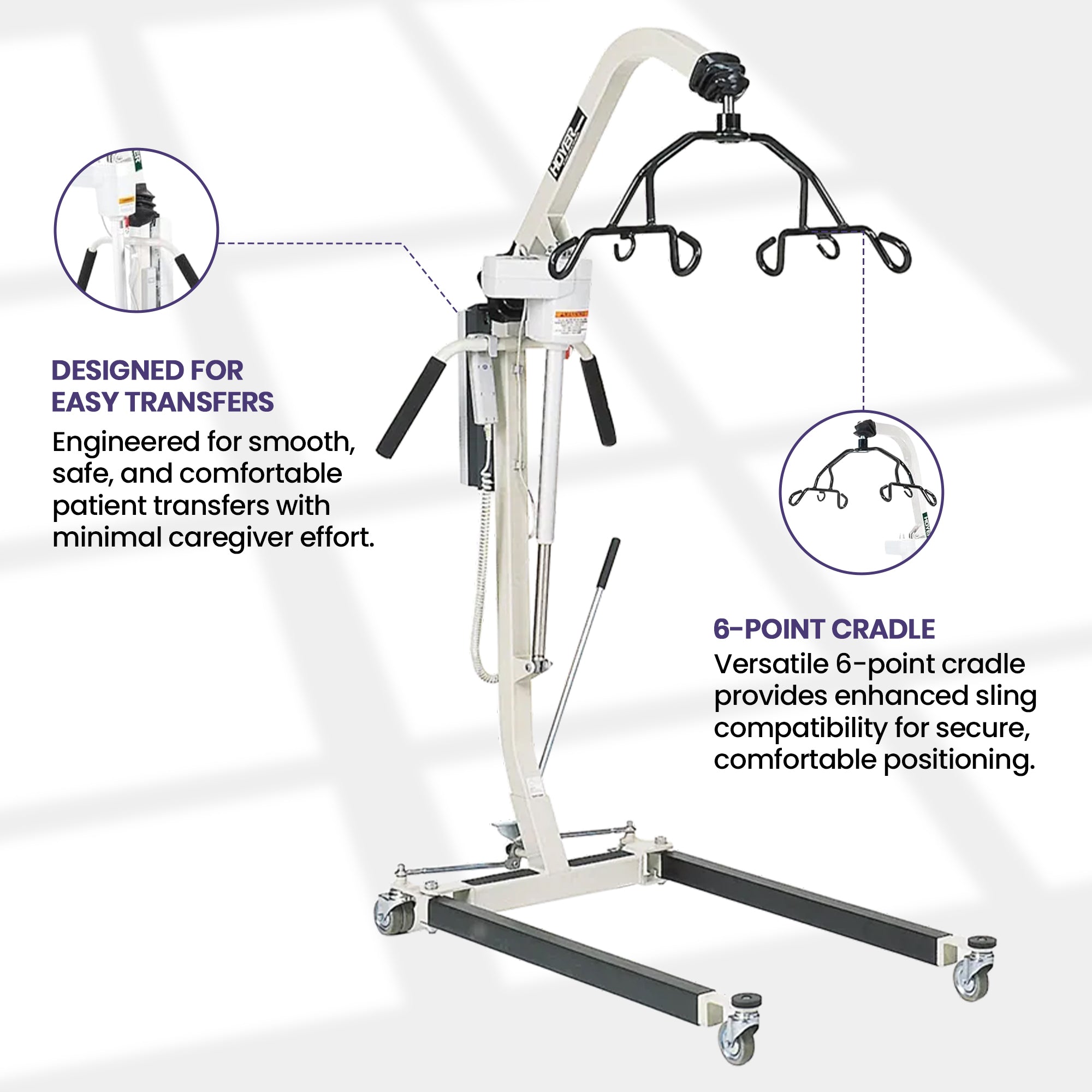

Hoyer HPL402 Electric Patient hospital bed transfer lift with a 6-point patient cradle, shown on a light gray background with feature callout circles and descriptive text.

BEST SELLER

$1,598.00

FREE Standard Shipping

Estimated delivery — Calculating delivery window…

Delivery within 3 business days

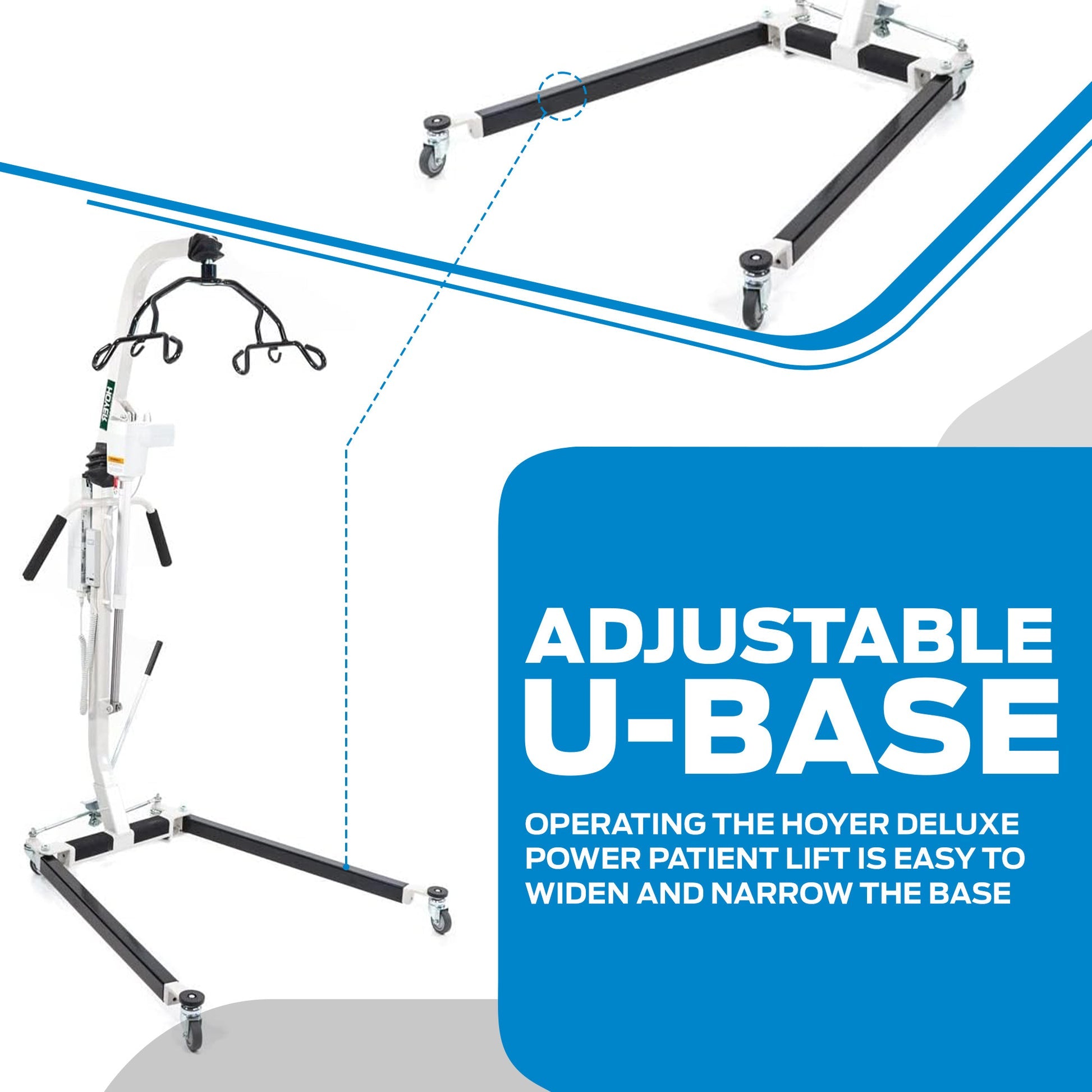

ADJUSTBALE U-BASE: Operating the Hoyer Deluxe power patient lift is easy to widen and narrow the base by pulling the adjustment handle back to unlock, right to widen and left to narrow the base. Perfect for easy seating and bathing.

DESIGNED FOR ALL PATIENT TRANSFERS: Use for bed to wheelchair transfers. Chair to toilet transfers and no hassle bathing

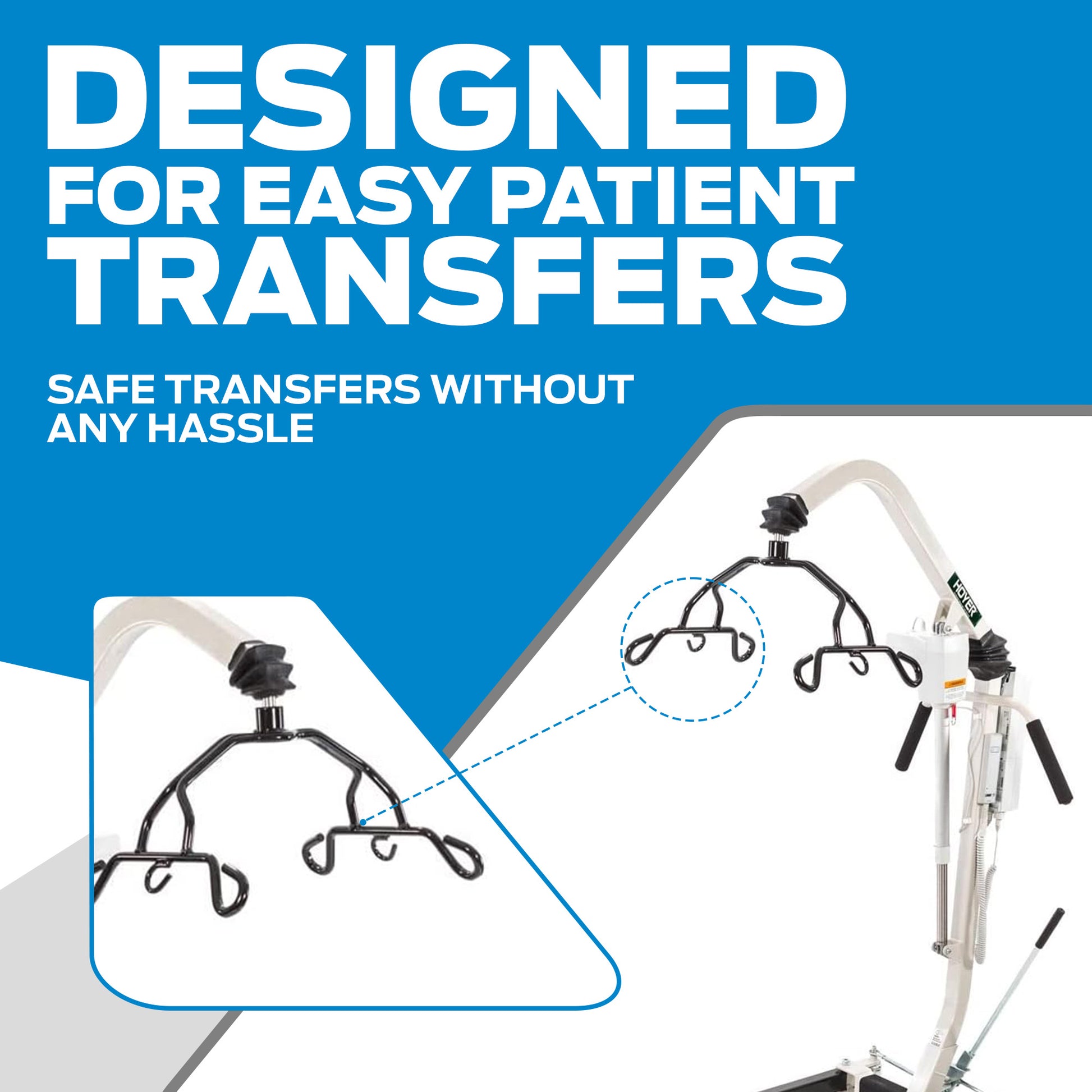

6 POINT CRADLE & LOW BASE: With only a 5.5” Clearance, the HPL402 makes it easy to roll under a chair or bed. Use a variety of slings or hooks with the impressive 6-point cradle

Compatible slings for the Hoyer HPL402

The Hoyer HPL402 uses compatible Classic loop-style Hoyer slings. Common options include Classic U-Sling, Classic One Piece, and One Piece Commode.

View Sling Compatibility Chart • Find a Sling for HPL402

Hoyer HPL402 Electric Patient Lift

$1,598.00

Joerns Hoyer HPL402 Classic Deluxe Electric Patient Lift is a dependable transfer solution designed to provide safe, comfortable, and efficient patient handling in both home and professional care settings. Powered by an electric lifting system, it minimizes caregiver effort while delivering smooth, controlled transfers for individuals with limited mobility.

Electric lifting system for smooth, effortless patient transfers
Adjustable U-base for improved access around wheelchairs, beds, and furniture
Ergonomic push handles designed to reduce caregiver fatigue
Emergency manual lowering mechanism for added safety during power loss
Suitable for bed-to-chair, wheelchair, toilet, and bathing transfers

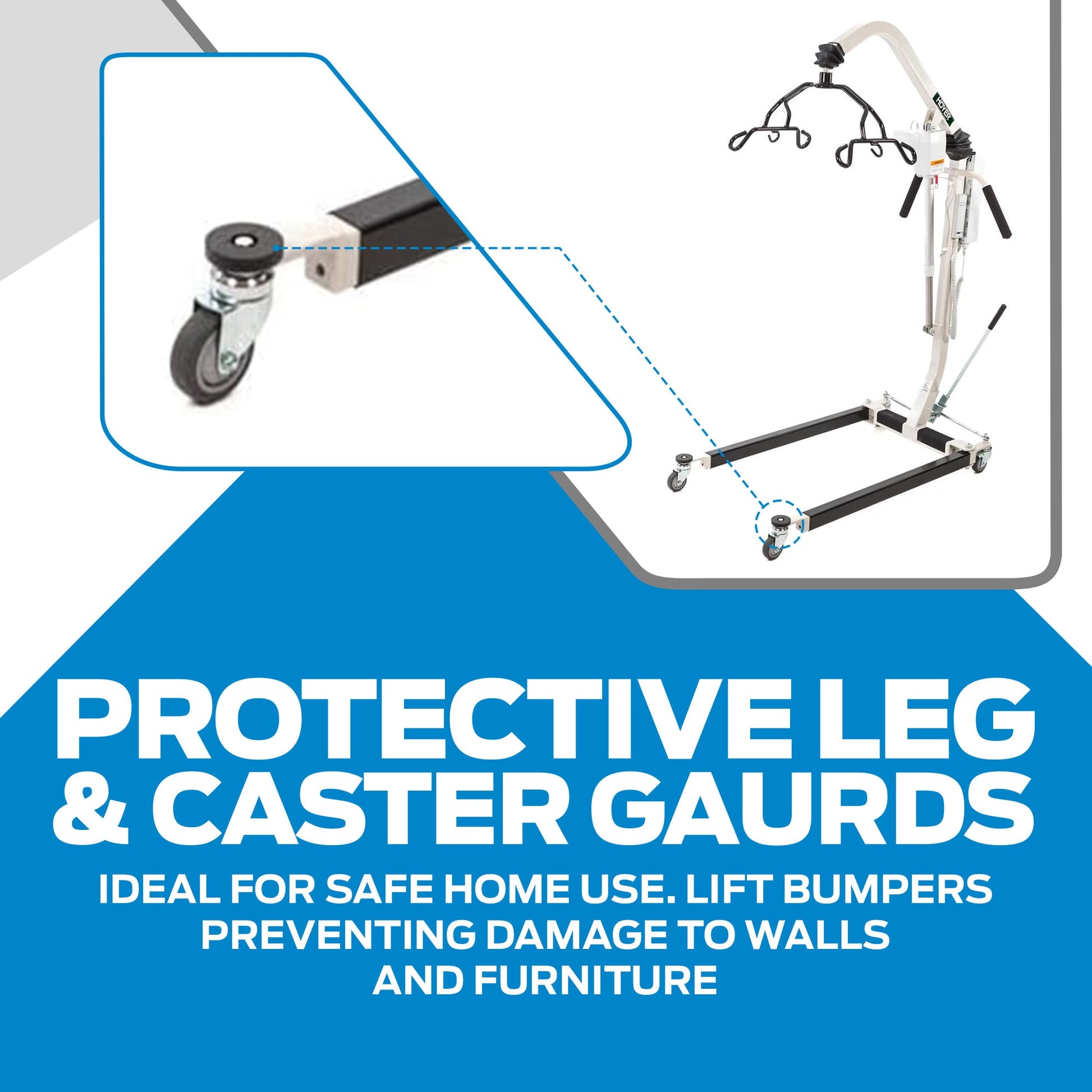

Protective leg and caster guards help prevent damage to walls and furniture.
Low-profile base with 5.5-inch clearance fits easily under most beds and chairs.
Six-point cradle compatible with a wide range of patient slings.

Adjustable Base for Greater Accessibility:
The HPL402 features an easy-to-operate adjustable U-base that expands or narrows to accommodate different transfer environments. This allows caregivers to position the lift more easily around wheelchairs, recliners, commodes, and other furniture, making transfers safer and more convenient.

Comfortable and Caregiver-Friendly Design:
Designed with caregivers in mind, the HPL402 includes ergonomic handle grips that improve maneuverability while helping reduce physical strain during patient handling. In addition, a manual emergency lowering system provides a safe backup option in the event of a power interruption.

Versatile for Everyday Transfers:
Whether transferring a patient from a bed to a wheelchair, assisting with toileting, or supporting bathing routines, the HPL402 delivers reliable performance across a wide range of daily care tasks. Its sturdy construction and powered lifting mechanism help create
safer, more comfortable transfers for both patients and caregivers.

Low-Profile Base and Six-Point Cradle:
With just 5.5 inches of ground clearance, the lift rolls smoothly beneath most beds, chairs, and other furniture. The integrated six-point cradle is compatible with multiple sling styles, giving caregivers greater flexibility to choose the most appropriate sling for each patient's needs.

Built for Long-Term Reliability:
Manufactured by Joerns Healthcare, the Hoyer HPL402 is built for durability and dependable everyday use. It is supported by a limited lifetime warranty on the frame along with a 2-year warranty on parts, providing added confidence and long-term value for home caregivers and healthcare facilities.

Weight Capacity

400 lbs

Product Weight

93 lbs

Lifting Range

29" to 76"

Overall Length

44.75"

Base Clearance

4.875"

Width of Base (Opened)

39.5"

Width of Base (Closed)

24"

Length of Base

43.6"

Minimum Lifting Height

30.5"

Max Lifting Height

78"

Boom Articulation Radius

31.4"

Battery Type

2-12V, Rechargeable

Charger Input

120V AC

Charger Output

24V DC

Shipping Dimensions

Shipping Type

Ground

Weight

111 lbs

Dimensions

53 (L) x 27 (W) x 21 (H)

Hoyer HPL402 Specifications HPL402 Manual Hoyer Classics Warranty

Lifts covered under this warranty include: HML400,
HPL402, C-HLA (and variations).

Your Hoyer Classics Lifts are warranted for one (1)
year after purchase by the original consumer/owner.

Components are defined as follows:
1. Lifter structure; base, mast, boom, and
suspension cradle
2. Hydraulic pump/jack (for manual lifts)
3. Electronic control box and actuator (for power lifts)

All other non-durable components, such as rubber
parts, plastic parts and painted surfaces, and batteries
are warranted for 90 days from original consumer/
owner purchase. These non-durable components are
subject to normal wear and replacement. The pendant
is guaranteed for one year.

Damage caused by use in unsuitable environmental
conditions or failure to maintain the product in
accordance with user and service instructions is not
covered. Any alteration, modification, or repair unless
performed by or authorized in writing by Joerns
Healthcare will void this warranty.

This warranty applies in the USA and Canada only.
Check with your supplier to find out if international
warranties apply.

Parts

Hoyer Classics Lifts contain various parts that
wear from normal use. These parts, such as rubber
parts, plastic parts painted surfaces, batteries, hand
pendants and casters are not covered under the
one-year warranty but are covered for 90 days after
date of purchase.

Joerns Healthcare’s obligation under this warranty is
limited to supplying replacement parts, servicing, or
replacing, at its option, any product which is found by
Joerns Healthcare to be defective.

Warranty replacement parts are covered by the terms
of this warranty until the product’s original warranty
period expires.

When requested by Joerns Healthcare, parts must
be returned for inspection at the customer’s expense.
Credit will be issued only after inspection.

Service

Most service requests can be handled by the facility
Maintenance Department with assistance from the
Joerns Healthcare Product Service Department.
Should a technician be required, one will be provided
by Joerns Healthcare, at our discretion. Only the
Joerns Healthcare Product Service Department can
dispatch authorized technicians.

This warranty is extended to the original purchaser of
the equipment.

A white and black motorized senior transfer lift is shown in a home living room setting, with an elderly woman sitting in the suspended sling while a caregiver in navy scrubs operates the controls.

Reliable Everyday Electric Patient Lift for Home Care

The Hoyer HPL402 electric patient lift is built for caregivers who need consistent, everyday powered performance in the home.
Its reverse-mounted actuator creates extra knee and leg clearance during transfers, making the experience more comfortable for the patient. The adjustable U-base opens and closes with a simple pull-handle (no foot pedal), giving better access for bed-to-wheelchair, chair-to-toilet, and seated transfers.
With a 400 lb capacity, protective leg guards, and caster bumpers that help prevent damage to furniture and walls, the HPL402 is designed for real home environments. It also includes a mechanical emergency down-release lever, so you can safely lower a patient even if the battery loses power.
For most home caregivers, the lighter and more versatile Hoyer Advance-E remains the preferred and most popular electric patient lift because of its superior portability, tool-free folding design, and excellent floor recovery capability. The HPL402 is a solid alternative when higher weight capacity is the main priority.

Need a sling for your Hoyer HPL402? View our Hoyer Sling Compatibility Chart to find compatible Classic loop-style sling options.

Frequently Asked Questions

What is the safe working load and primary use of the Hoyer HPL402?

The Hoyer HPL402 has a safe working load of 400 lbs. It is an electric floor lift designed primarily for home care and lighter professional use.

It is often described as the powered version of Hoyer’s popular homecare hydraulic lift (HML400). The 400 lb capacity covers a large percentage of typical home-care patients while keeping the lift relatively manageable in weight and size compared with higher-capacity professional models.

Does the HPL402 have a powered base or a manual base?

The HPL402 has a manual (hand-operated) adjustable U-base. The caregiver opens and closes the legs using a handle or lever rather than an electric actuator.

The boom (lifting arm) is electrically powered. This combination keeps the lift simpler and more affordable than fully powered-base models such as the Presence or HPL450-EL, while still eliminating the physical effort of pumping a hydraulic handle.

What is special about the actuator design on the HPL402?

The HPL402 uses a reverse-mounted actuator. By mounting the actuator in the reverse position, the design creates additional clearance around the patient’s knees and lower legs during the lift.

This is a practical comfort and safety feature, especially when transferring patients from chairs or when the patient has limited knee flexion. Many caregivers specifically look for this reverse-actuator design when choosing a mid-range electric lift.

Can the Hoyer HPL402 lift a patient from the floor?

Yes. The HPL402 is capable of floor recoveries. Its lifting range typically runs from approximately 30.5 inches at the lowest boom position to about 78 inches at the highest.

With proper sling application and base positioning, the lift can recover a patient from the floor and transfer them to a bed or chair. As with any floor recovery, correct technique and adequate base stability are essential.

What are the base width and clearance dimensions of the HPL402?

The adjustable U-base closes to approximately 24 inches wide and opens to about 39.5 inches. Base clearance (height of the legs) is roughly 4.9 to 5.25 inches, which allows the lift to slide under many beds and chairs.

These dimensions make the HPL402 practical for residential environments where doorway width and furniture clearance are often limited.

What battery and safety features does the HPL402 include?

The HPL402 is powered by a 24V battery system (typically two 12V sealed lead-acid batteries). It includes a hand control for raising and lowering the boom, an emergency stop, and a mechanical emergency down release that allows the patient to be lowered even if power is lost.

Protective leg guards and caster bumpers are also fitted to help reduce damage to walls and furniture during everyday use. Total lift weight is approximately 93 lbs.

What cradle and sling options are available, and is a scale included?

The HPL402 comes standard with a 6-point cradle designed for traditional loop-style Hoyer slings (Quickfit, Full Back, Long Seat, etc.).

A digital scale is optional and sold separately. Slings are not included with the lift and must be purchased separately. Customers should always match the sling’s weight rating to the patient’s weight and confirm compatibility with the 6-point cradle.
